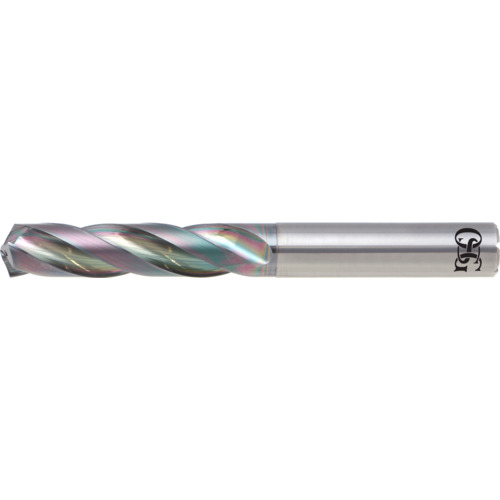

9.38 mm Dia. × 10 mm Shank × 47 mm Flute Length × 106 mm OAL, 3xD, EgiAs, 3 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 9.38 mm Dia. × 10 mm Shank Dia. × 106 mm OAL × 47 mm LCF ; 140 Degrees ; 3xD ; EgiAs ; Series 6600
| Drill Bit Size / Cutting Diameter (DC) | 9.38 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.38 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6600 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 47 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 47 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 106 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 47 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.2
