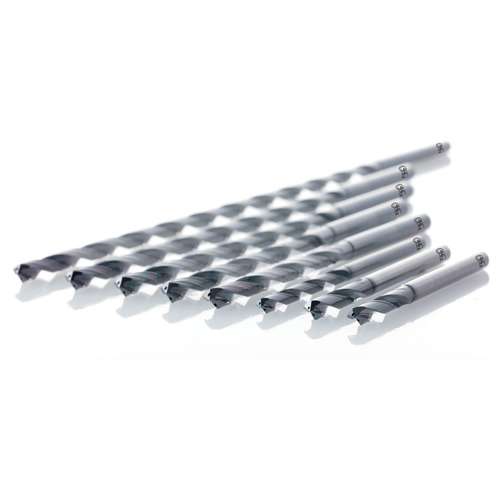

5 mm Dia. × 5 mm Shank × 265 mm Flute Length × 315 mm OAL, 50xD, EgiAs, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 5 mm Dia. × 5 mm Shank Dia. × 315 mm OAL × 265 mm LCF ; 140 Degrees ; 50xD ; EgiAs ; Series 6570
| Drill Bit Size / Cutting Diameter (DC) | 5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm | Tool Type | Taper Drill |
| Length Group | 50xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6570 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Usable Length (LU) | 265 mm |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Length Chip Flute (LCF) | 265 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 315 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 265 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.335
