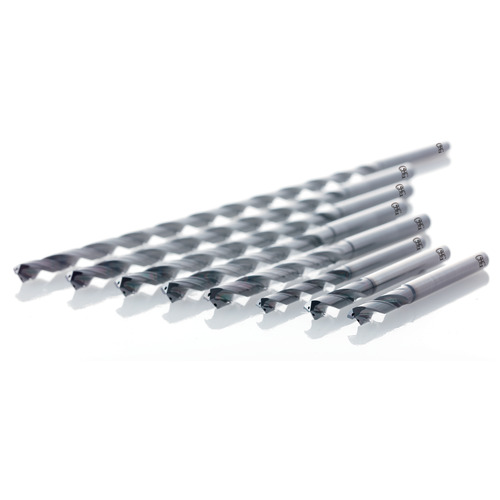

5/16″ Dia. × 5/16″ Shank × 420.82 mm Flute Length × 471 mm OAL, 50xD, EgiAs, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 5/16″ Dia. × 5/16″ Shank Dia. × 471 mm OAL × 420.82 mm LCF ; 140 Degrees ; 50xD ; EgiAs ; Series 6570
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Tool Type | Taper Drill |
| Decimal Equivalent | 0.3125″ | Measurement Type | Inch |
| Length Group | 50xD | Series/List # | 6570 |
| Coating | EgiAs | Usable Length (LU) | 420.82 mm |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Length Chip Flute (LCF) | 420.82 mm |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 471 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 420.82 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.35
