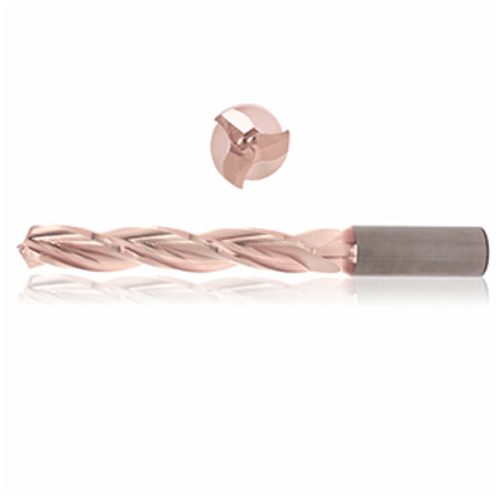

.6094X5/8X3X5 3FL_
130° Self Centering Point, Single Margin, Non Coolant Thru High Performance, Aluminum and Non Ferrous Material
| Drill Bit Size / Cutting Diameter (DC) | 0.6094″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.6094″ | Shape | Round |
| Decimal Equivalent | 0.6094″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.48 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Flute Type | Helical |
| Coating | ZrCN | Grade | A5010 ZircoPlus |
| Applicable Material | | Aluminum | Non Ferrous Metals | Cast Iron | | Measurement Type | Inch |
| Application | | Drilling | | Series/List # | CX |

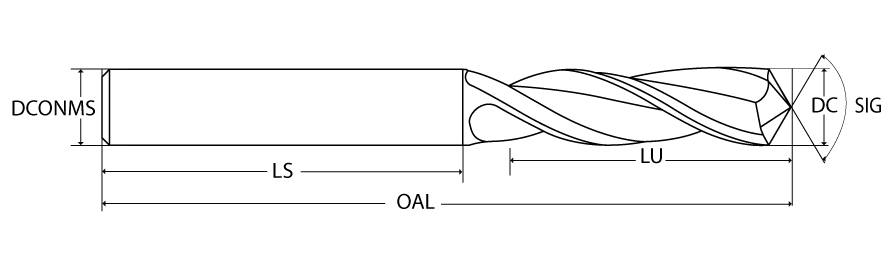

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 2.5859″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 3″ |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 5″ |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Number of Teeth | 3 | Feature | SINGLE-MARGIN DRILL |
| Shank Length (LS) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 130° Self Centering Point, Single Margin, Non Coolant Thru High Performance, Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | USA |
