SCD 0312-125-375 CVD

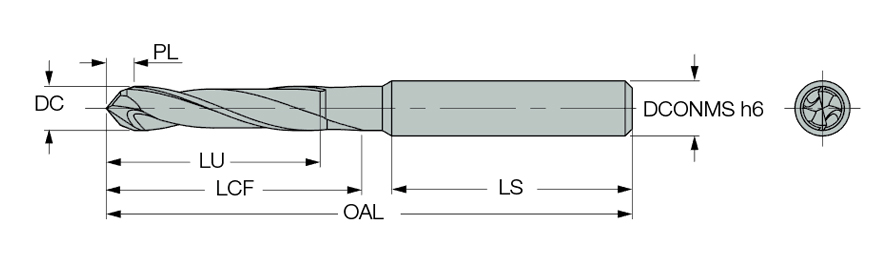

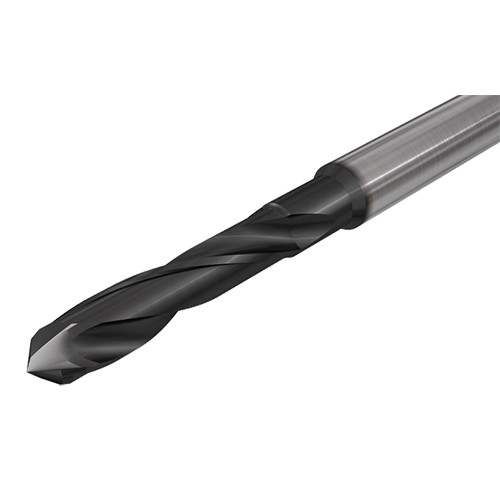

SC Drill; 0.312″ Dia. × 3/8″ Shank Dia. × 3″ OAL × 1.72″ LCF ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.312″ | Measurement Type | Inch |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.312″ | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Length Chip Flute (LCF) | 1.72″ |
| Point Length (PL) | 0.263″ | Overall Length (OAL) | 3″ |
| Number of Teeth | 2 | Flute Count (NOF) | 0 |
| Shank Length (LS) | 1.18″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Jobber Drill | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | solid carbide Drills | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.128
