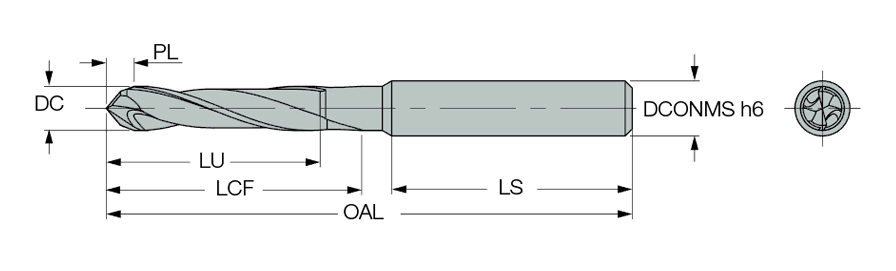

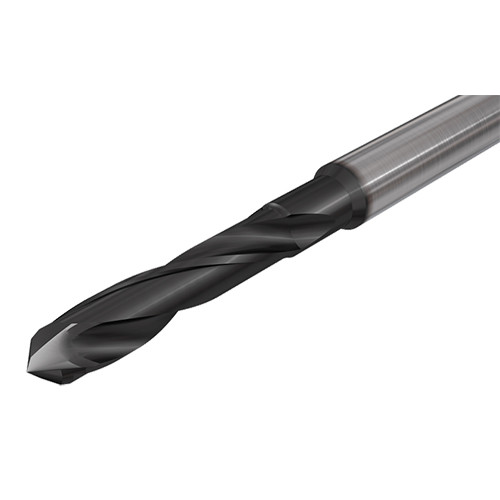

SCD 0485-028-060 CVD
SC Drill; 4.85 mm Dia. × 6 mm Shank Dia. × 70 mm OAL × 35 mm LCF ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 4.85 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1909″ | Series/List # | 2464 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.85 mm | Usable Length (LU) | 28 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 70 mm |
| Point Length (PL) | 4 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 32 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills |
Product Features
| Family Description | Solid carbide drills with CVD coating for composite materials (CFRP) and Stack Machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.051
