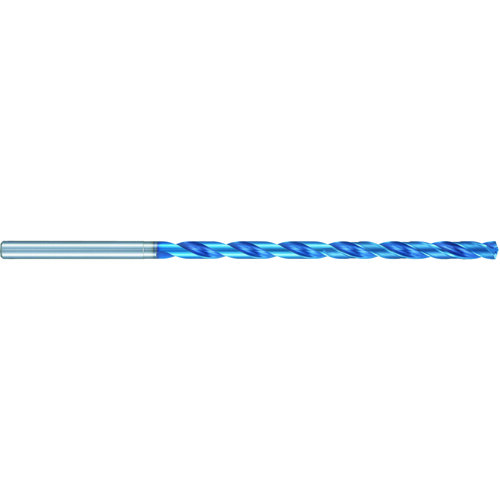

L9614 3.5MM SC 15XD DRILL
SC Drill; 3.5 mm Dia. × 4 mm Shank Dia. × 113 mm OAL ; 140 Degrees ; 15xD ; AlCrN ; Series L9614
| Drill Bit Size / Cutting Diameter (DC) | 3.5 mm | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.5 mm | Measurement Type | Metric |
| Length Group | 15xD | Series/List # | L9614 |
| Coating | AlCrN | Usable Length (LU) | 65 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 113 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 63 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
