SCD 0637-032-080 WPCD

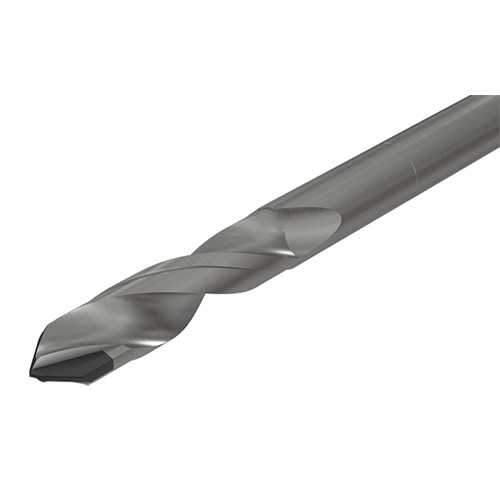

SC Drill; 6.37 mm Dia. × 8 mm Shank Dia. × 75 mm OAL × 41.6 mm LCF ; Series 2464

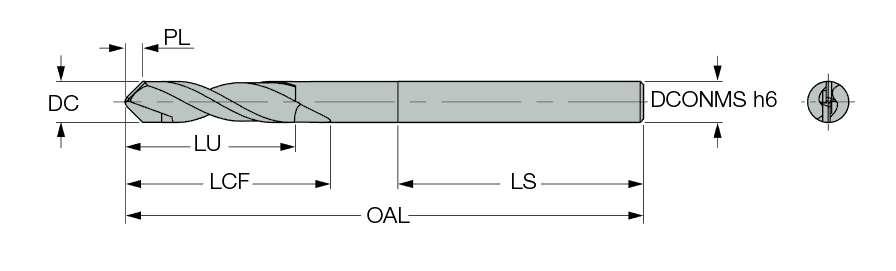

| Drill Bit Size / Cutting Diameter (DC) | 6.37 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2508″ | Series/List # | 2464 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.37 mm | Usable Length (LU) | 32 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 41.6 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 75 mm |
| Point Length (PL) | 3.19 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 32 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills |
Product Features
| Family Description | Solid carbide drills with PCD insert for composite materials (CFRP) and stack machining | Country of Origin | Israel |
