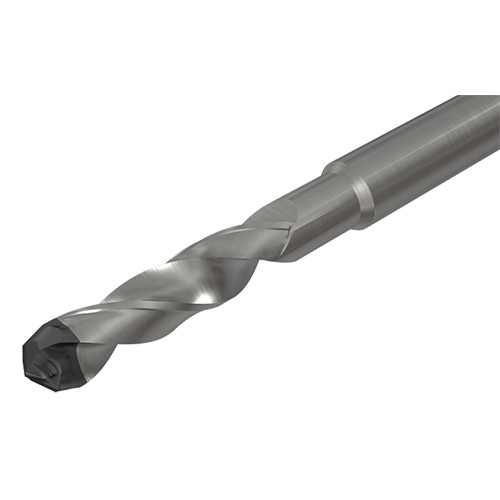

SCD 0130-100-188 FNPCD
SC Drill; 0.13″ Dia. × 0.187″ Shank Dia. × 2-3/4″ OAL × 1.19″ LCF ; Series 2464

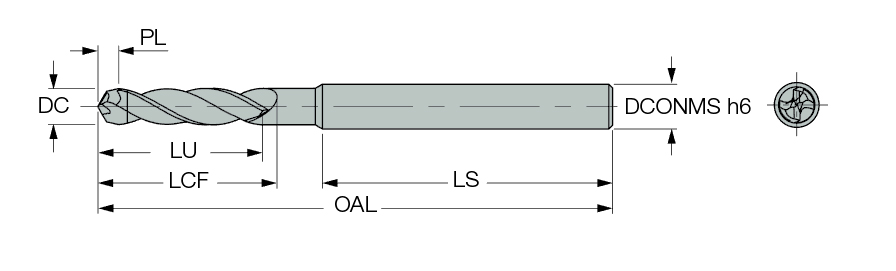

| Drill Bit Size / Cutting Diameter (DC) | 0.13″ | Measurement Type | Inch |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.13″ | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 0.187″ | Length Chip Flute (LCF) | 1.19″ |
| Point Length (PL) | 1/8″ | Overall Length (OAL) | 2-3/4″ |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.42″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Jobber Drill | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | solid carbide Drills | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid Carbide Drills with PCD Full Nib Insert for Composite Materials (CFRP) and Stack Machining | Country of Origin | Israel |
