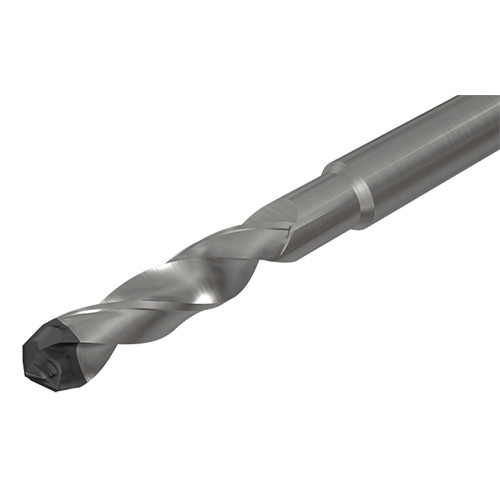

SCD 0330-025-040 FNPCD
SC Drill; 3.3 mm Dia. × 4 mm Shank Dia. × 70 mm OAL × 30 mm LCF ; Series 2464

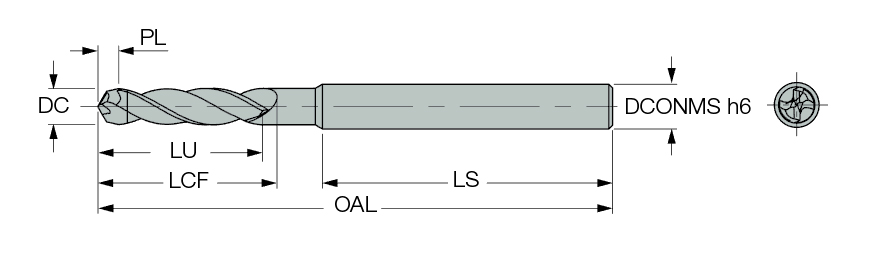

| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1299″ | Series/List # | 2464 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Usable Length (LU) | 25 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Overall Length (OAL) | 70 mm |
| Point Length (PL) | 3 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 36 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills |
Product Features
| Family Description | Solid Carbide Drills with PCD Full Nib Insert for Composite Materials (CFRP) and Stack Machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.029
