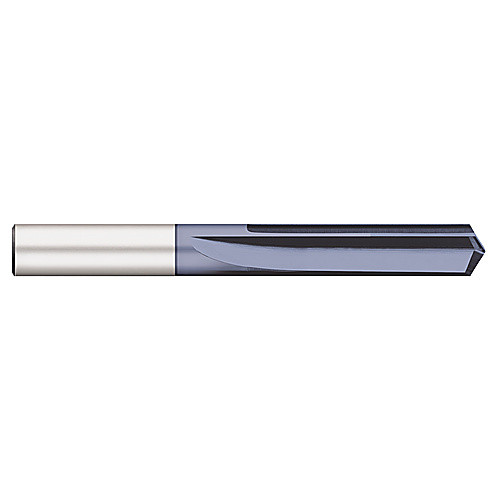

196 N11 STR FLT DR ALTIN
SC Drill; 0.191″ Dia. × 0.191″ Shank Dia. × 2-1/2″ OAL × 1-1/8″ LCF ; 140 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.191″ | Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.191″ | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.191″ | Length Chip Flute (LCF) | 1-1/8″ |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 2-1/2″ |
| Functional Length (LF) | 1-1/8″ | Flute Count (NOF) | 2 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.035
