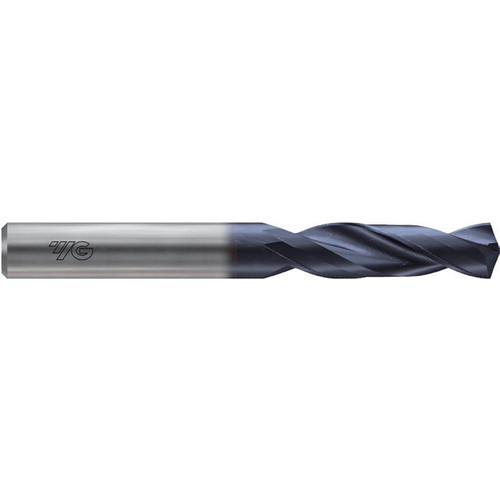

SC Drill; 5.8 mm Dia. × 5.8 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DB301
SC Drill; 5.8 mm Dia. × 5.8 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DB301
| Drill Bit Size / Cutting Diameter (DC) | 5.8 mm | Shank Standard | DIN 6539 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2283″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2283″ | Tool Type | General Purpose |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.8 mm | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiAIN | Series/List # | DB301 |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 5.8 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 66 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Straight-Cylindrical | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.875
Package Width
0.625
Package Height
0.625
Package Weight
0.999
