DH0480020T7R01 IN2005

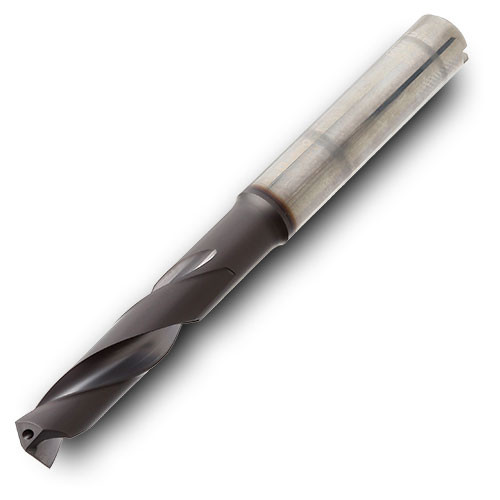

SC Drill; 4.8 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3D ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 4.8 mm | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.189″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.8 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3D | Grade | IN2005 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drill Mill | Drilling | | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
Product Features
| Family Description | 140° Included Point 30° Axial Rake Internal Coolant | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.049
