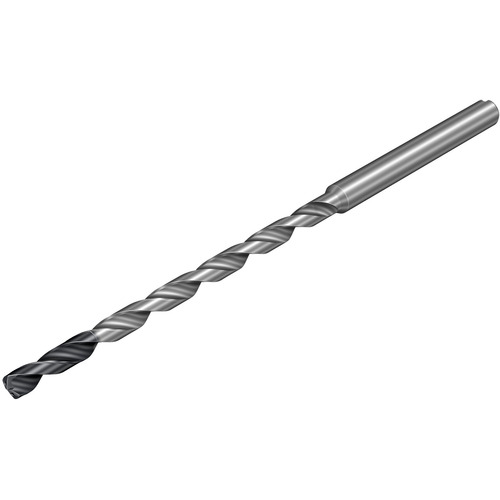

86211800288A1GMX2BL DRILL
SC Drill; 1.8 mm Dia. × 3 mm Shank Dia. × 65 mm OAL × 32 mm LCF ; 137 Degrees ; 16xD
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm | Functional Length (LF) | 64.67 mm |
| Length Group | 16xD | Grade | X2BL |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 28.8 mm |
| Point Angle (SIG) | 137 Degrees | Length Chip Flute (LCF) | 32 mm |
| Point Length (PL) | 0.35 mm | Overall Length (OAL) | 65 mm |
Product Features
| Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.035
