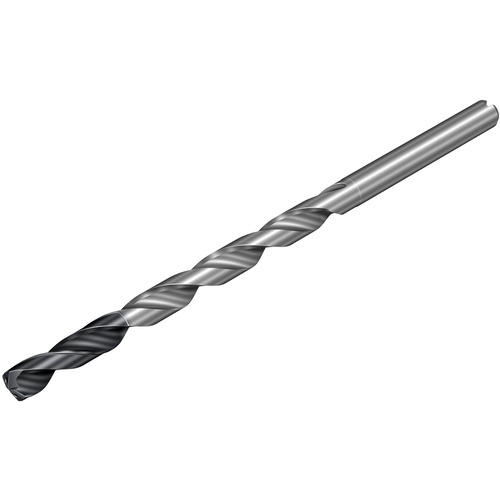

86213000360A1GMX2BL DRILL
SC Drill; 3 mm Dia. × 3 mm Shank Dia. × 60 mm OAL × 40 mm LCF ; 137 Degrees ; 12xD
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Functional Length (LF) | 59.45 mm |
| Length Group | 12xD | Grade | X2BL |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 36 mm |
| Point Angle (SIG) | 137 Degrees | Length Chip Flute (LCF) | 40 mm |
| Point Length (PL) | 0.59 mm | Overall Length (OAL) | 60 mm |
Product Features
| Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.099
