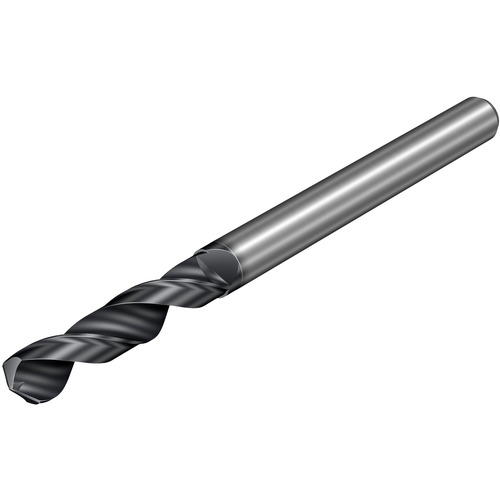

46213000140A0XMX2BM DRILL
SC Drill; 3 mm Dia. × 3 mm Shank Dia. × 38 mm OAL × 17 mm LCF ; 130 Degrees ; 5xD
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Functional Length (LF) | 37.3 mm |
| Length Group | 5xD | Grade | X2BM |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 14 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 17 mm |
| Point Length (PL) | 0.7 mm | Overall Length (OAL) | 38 mm |
Product Features
| Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.044
