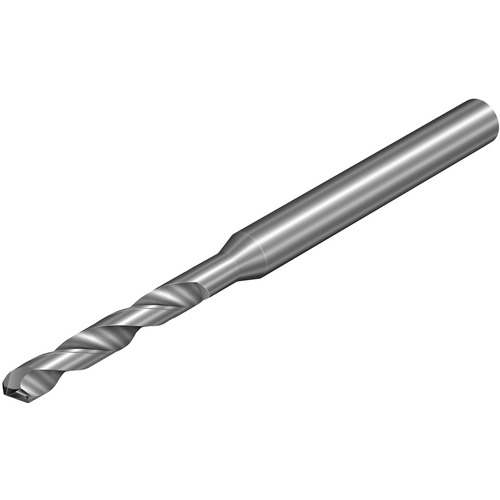

86211588127A0GMX1DU DRILL
SC Drill; 1.588 mm Dia. × 3 mm Shank Dia. × 37.5 mm OAL × 15.45 mm LCF ; 118 Degrees ; 8xD ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 1.588 mm | Functional Length (LF) | 37.023 mm |
| Length Group | 8xD | Grade | X1DU |
| Coating | Uncoated | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 1/2″ |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 15.45 mm |
| Point Length (PL) | 0.48 mm | Overall Length (OAL) | 37.5 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.006
