860.1-1375-040A1-PMP1BM

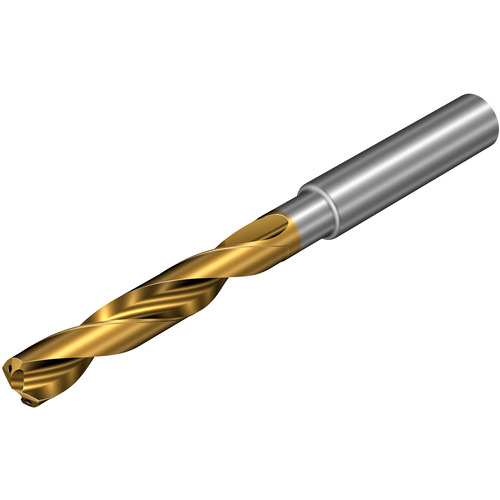

SC Drill; 13.75 mm Dia. × 14 mm Shank Dia. × 107 mm OAL × 60 mm LCF ; 147 Degrees ; 3xD ; | TiAlSiN | TiSiN | ; Series CoroDrill 860
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 13.75 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.75 mm | Shank Standard | DIN 6535 HA | DIN 6537 K |
| Length Group | 3xD | Cutting Edge Material | Carbide |
| Coating | | TiAlSiN | TiSiN | | Tool Type | Solid Carbide Drills |
| Applicable Material | | Steel | | Grade | P1BM |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Internal | Series/List # | CoroDrill 860 |
| Point Angle (SIG) | 147 Degrees | Usable Length (LU) | 40 mm |
| Point Length (PL) | 2.036 mm | Length Chip Flute (LCF) | 60 mm |
| Functional Length (LF) | 104.8 mm | Overall Length (OAL) | 107 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.437
