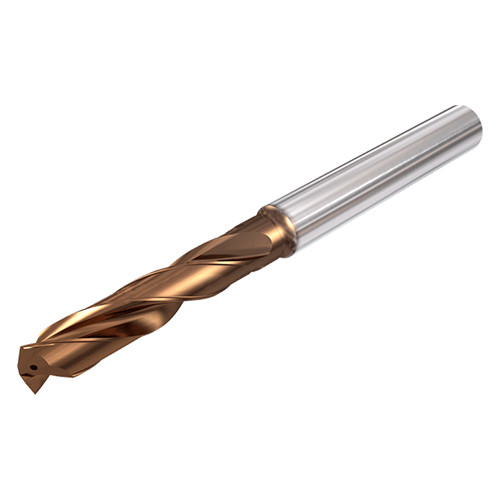

SCD 065-023-080 ACP3FL IC608
SC Drill; 6.5 mm Dia. × 8 mm Shank Dia. × 79 mm OAL × 34 mm LCF ; AlTiCrSiN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 6.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2559″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.5 mm | Grade | IC608 |
| Coating | AlTiCrSiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 23 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 34 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 79 mm |
| Point Length (PL) | 0.93 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 45 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 3xD (available in North America only) | Country of Origin | USA |
| Remarks | Based on DIN 6537 standard |
Shipping Info
Package Weight
0.09
