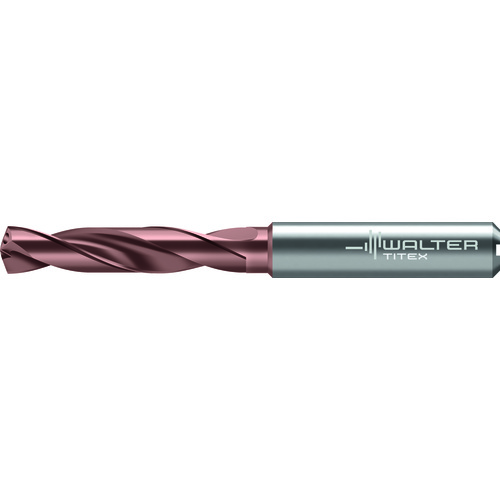

4.1 mm Dia. × 6 mm Shank × 24 mm Flute Length × 66 mm OAL, 3xD, 140 Degrees, Axial Inclined Exit, DIN 6535 HA, Cylindrical Solid Carbide Drill DC175 WJ30RZ
| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | High Performance |
| Coating | TiAlSiN | Grade | WJ30RZ |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | DC175 |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 17 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 24 mm |
| Functional Length (LF) | 24 mm | Overall Length (OAL) | 66 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 36 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | United States |
Shipping Info
Package Weight
0.04
