DMX0400FL

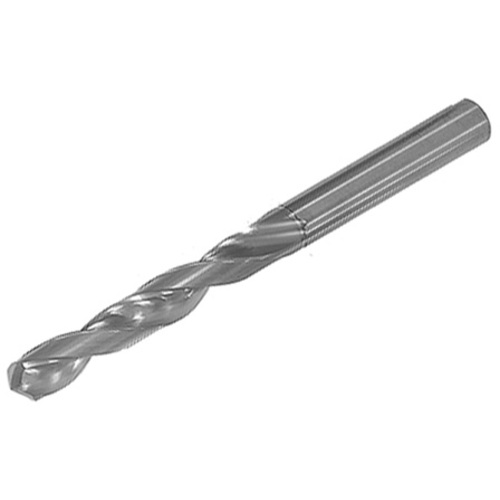

SC Drill; 6.7 mm Dia. × 6.7 mm Shank Dia. × 101 mm OAL × 63 mm LCF ; 118 Degrees ; Jobber ; nano-FIREX ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 6.7 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2638″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Measurement Type | Metric |
| Length Group | Jobber | Series/List # | 2464 |
| Coating | nano-FIREX | Usable Length (LU) | 52.95 mm |
| Connection Diameter Machine Side (DCONMS) | 6.7 mm | Length Chip Flute (LCF) | 63 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 101 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill | Body Material | Carbide |
Product Features
| Family Description | DMX0400FL | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
