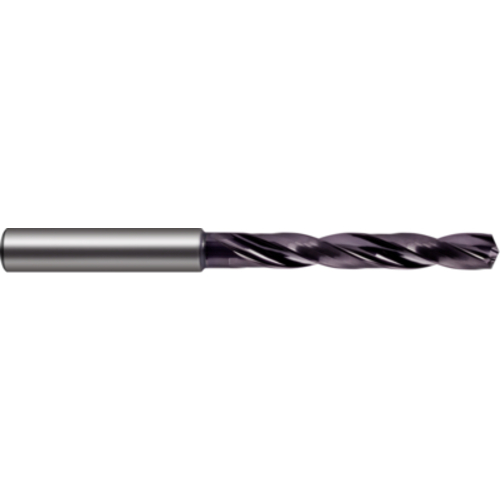

4.9MM 5X SC DRL-CLNT-FIRX
SC Drill; 4.9 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series 5498
Additional Tariff Surcharge of 6.6 %
| Drill Bit Size / Cutting Diameter (DC) | 4.9 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1929″ | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.9 mm | Series/List # | 5498 |
| Length Group | 5xD | Usable Length (LU) | 36.65 mm |
| Coating | TiAlN | Length Chip Flute (LCF) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 82 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.22
