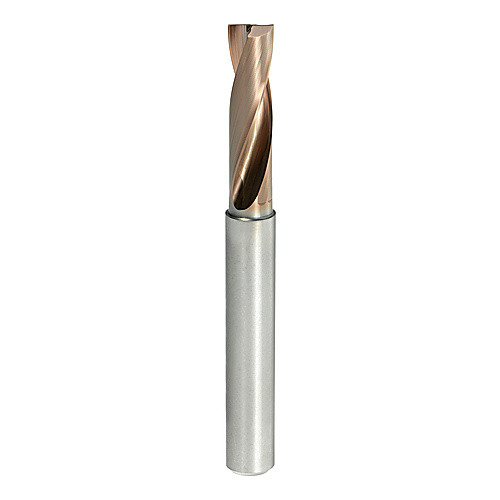

MFE1450X02S160 DP1020 14.5 mm Dia. × 16 mm Shank × 58 mm Flute Length × 111 mm OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
SC Drill; 14.5 mm Dia. × 16 mm Shank Dia. × 111 mm OAL × 58 mm LCF ; 180 Degrees ; 2xD ; Series MFE
| Drill Bit Size / Cutting Diameter (DC) | 14.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.5 mm | Grade | DP1020 |
| Length Group | 2xD | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | MFE |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 29 mm |
| Head Length (LH) | 61 mm | Length Chip Flute (LCF) | 58 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 111 mm |
| Point Angle (SIG) | 180 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 20 Degrees | Feature | High efficiency drilling in various types of machining. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.2500
