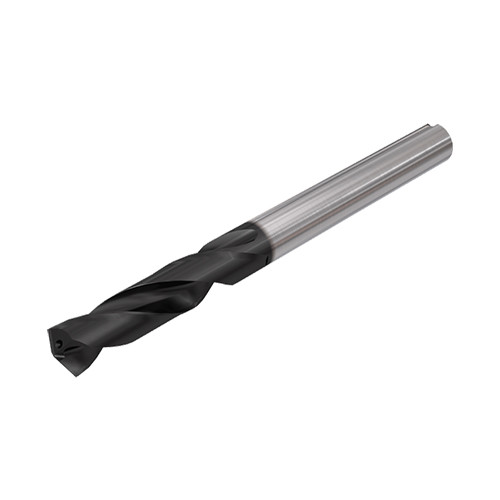

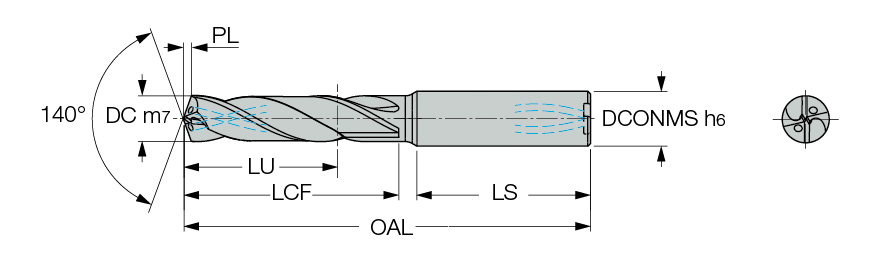

SCD 119-040-120 ACP3N IC908
SC Drill; 11.9 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 56 mm LCF ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 11.9 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.4685″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.9 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 56 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 102 mm |
| Point Length (PL) | 1.9 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 45 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 3xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.280
