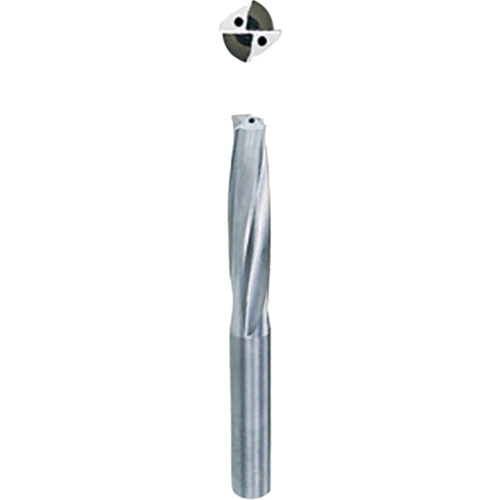

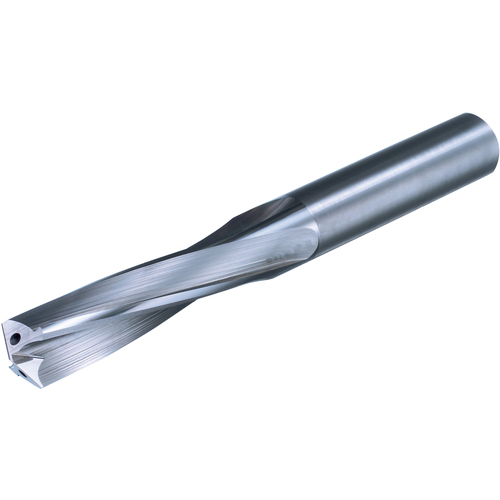

MAS1100MB HTi10 11 mm Dia. × 11 mm Shank × 57 mm Flute Length × 103 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 11 mm Dia. × 11 mm Shank Dia. × 103 mm OAL × 57 mm LCF ; 140 Degrees ; 3xD ; Series MAE_MAS
| Drill Bit Size / Cutting Diameter (DC) | 11 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11 mm | Grade | HTi10 |
| Length Group | 3xD | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | MAE_MAS |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Usable Length (LU) | 35 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 57 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 103 mm |
| Point Length (PL) | 2 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 101 mm | Feature | Pre-hole drilling for rolled tap.,Helical through coolant hole enables high speed machining (MAS type).,Specialized in aluminum and cast iron drilling.,High hole accuracy. |
| Flute Helix Angle (FHA) | 10 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.2500
