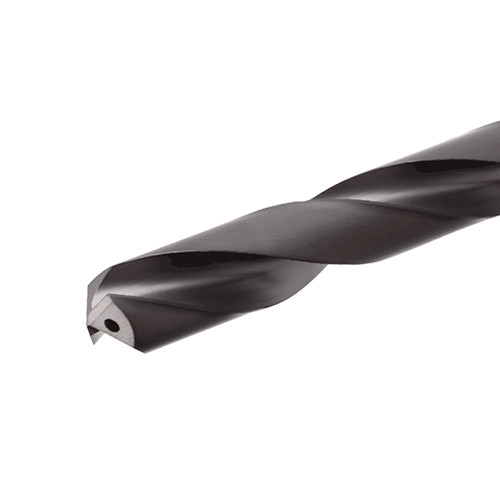

SCD0394-260-0437ACP5N IC908

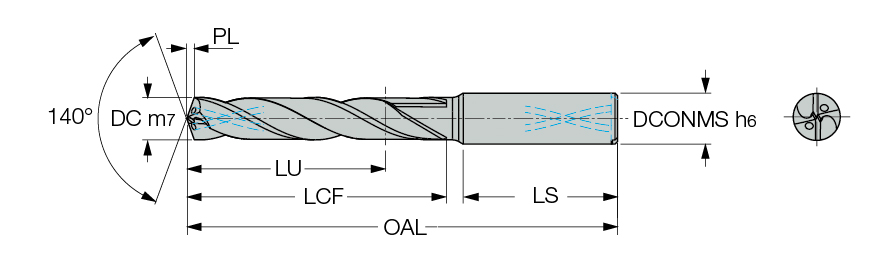

SC Drill; 0.394″ Dia. × 0.437″ Shank Dia. × 4.37″ OAL × 2.6″ LCF ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.394″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.394″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 2.09″ |
| Connection Diameter Machine Side (DCONMS) | 0.437″ | Length Chip Flute (LCF) | 2.6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 4.37″ |
| Point Length (PL) | 0.072″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1.67″ | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD. | Country of Origin | S.Korea |
