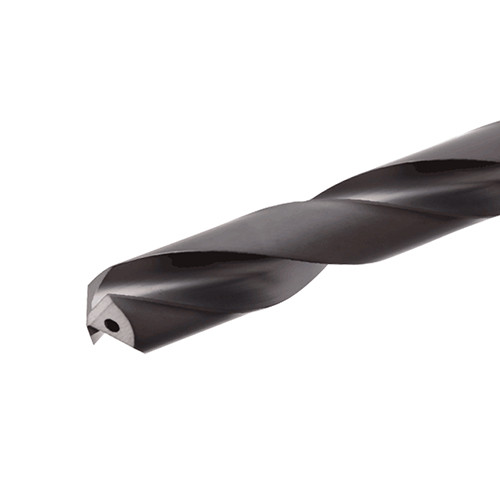

SCD0453-185-0500ACP3N IC908

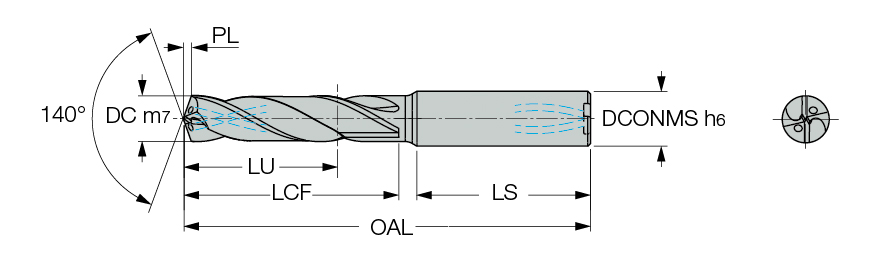

SC Drill; 0.453″ Dia. × 1/2″ Shank Dia. × 3.74″ OAL × 1.85″ LCF ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.453″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.453″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 1.34″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Chip Flute (LCF) | 1.85″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 3.74″ |
| Point Length (PL) | 0.082″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1.79″ | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 3xD. | Country of Origin | S.Korea |
