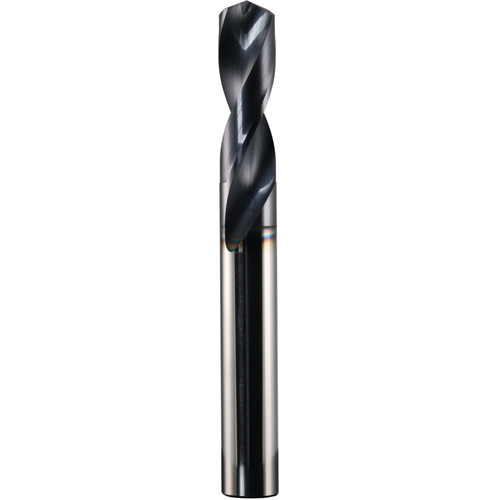

0.7 mm Dia. × 0.7 mm Shank × 4.5 mm Flute Length × 23 mm OAL, 3xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 0.7 mm Dia. × 0.7 mm Shank Dia. × 23 mm OAL × 4.5 mm LCF ; 145 Degrees ; 3xD ; Spiral Flute ; AlTiN ; Series 108
| Drill Bit Size / Cutting Diameter (DC) | 0.7 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.0276″ | Length Below Shank | 18.5 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.7 mm | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | AlTiN | Series/List # | 108 |
| Connection Diameter Machine Side (DCONMS) | 0.7 mm | Usable Length (LU) | 4 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 4.5 mm |
| Point Angle (SIG) | 145 Degrees | Overall Length (OAL) | 23 mm |
| Flute Helix Angle (FHA) | 27 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.004
