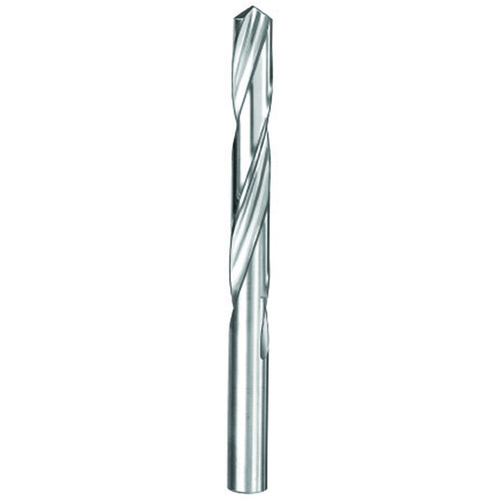

6.2 mm Dia. × 6.2 mm Shank × 63 mm Flute Length × 101 mm OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 6.2 mm Dia. × 6.2 mm Shank Dia. × 101 mm OAL × 63 mm LCF ; 118 Degrees ; 5xD ; Spiral Flute ; Uncoated ; Series 101
| Drill Bit Size / Cutting Diameter (DC) | 6.2 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2441″ | Length Below Shank | 38 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.2 mm | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 101 |
| Connection Diameter Machine Side (DCONMS) | 6.2 mm | Usable Length (LU) | 50 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 63 mm |
| Point Angle (SIG) | 118 Degrees | Overall Length (OAL) | 101 mm |
| Flute Helix Angle (FHA) | 20 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.058
