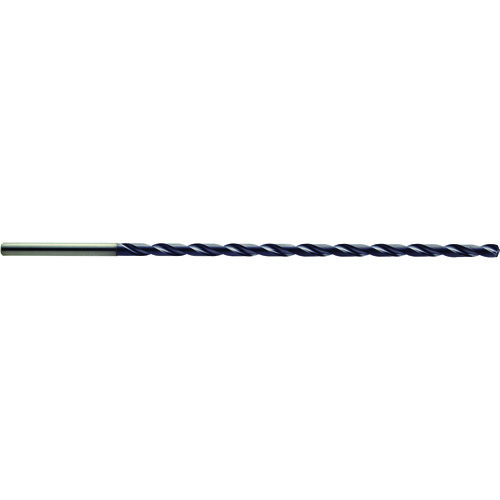

SC Drill; 7.6 mm Dia. × 8 mm Shank Dia. × 289 mm OAL × 249 mm LCF ; 140 Degrees ; 30xD ; TiAlN ; Series DHM30
SC Drill; 7.6 mm Dia. × 8 mm Shank Dia. × 289 mm OAL × 249 mm LCF ; 140 Degrees ; 30xD ; TiAlN ; Series DHM30
| Drill Bit Size / Cutting Diameter (DC) | 7.6 mm | Point Length (PL) | 1.383 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2992″ | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.2992″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.6 mm | Tool Type | Dream Drills MQL |
| Length Group | 30xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | DHM30 |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 249 mm |
| Application | Steel | Overall Length (OAL) | 289 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 140 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
14.25
Package Width
0.75
Package Height
0.75
Package Weight
0.3265
