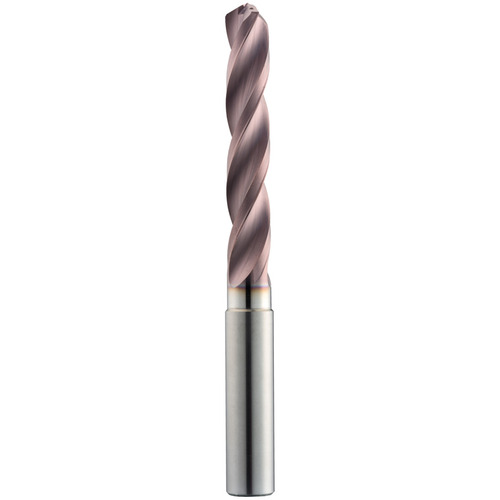

5/8″ Dia. × 0.6299″ Shank × 83 mm Flute Length × 5.236″ OAL, 5xD, 124°, TM, 3 Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 5/8″ Dia. × 0.6299″ Shank Dia. × 5.236″ OAL × 83 mm LCF ; 124 Degrees ; 5xD ; Spiral Flute ; TiSiN ; Series 141K
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.625″ | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiSiN | Series/List # | 141K |
| Connection Diameter Machine Side (DCONMS) | 0.6299″ | Usable Length (LU) | 3.268″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 83 mm |
| Point Angle (SIG) | 124 Degrees | Overall Length (OAL) | 5.236″ |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
