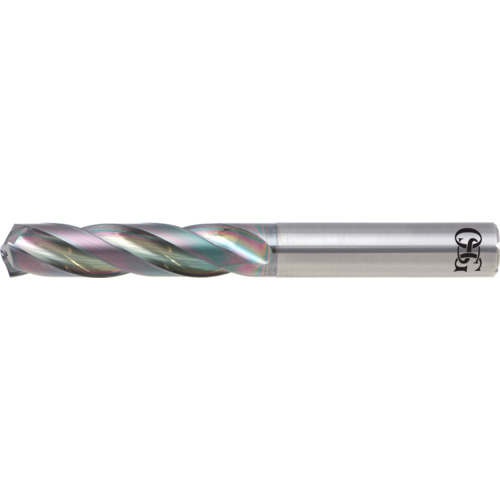

21/32″ Dia. × 3/4″ Shank × 85 mm Flute Length × 150 mm OAL, 3xD, EgiAs, 3 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 21/32″ Dia. × 3/4″ Shank Dia. × 150 mm OAL × 85 mm LCF ; 140 Degrees ; 3xD ; EgiAs ; Series 6600
| Drill Bit Size / Cutting Diameter (DC) | 21/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 21/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.6563″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 6600 |
| Coating | EgiAs | Usable Length (LU) | 85 mm |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 85 mm |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Overall Length (OAL) | 150 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 85 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.885
