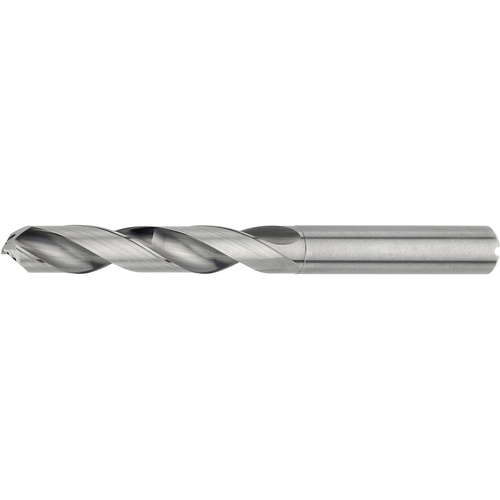

MNS0790X30DB CARB DRILL
SC Drill; 7.9 mm Dia. × 8 mm Shank Dia. × 322.4 mm OAL × 265.4 mm LCF ; 140 Degrees ; 30xD ; Series MNS
| Drill Bit Size / Cutting Diameter (DC) | 7.9 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.9 mm | Cutting Edge Material | Carbide |
| Length Group | 30xD | Grade | TF15 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | MNS |
| Head Length (LH) | 268.4 mm | Usable Length (LU) | 238.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 265.4 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 322.4 mm |
| Point Length (PL) | 1.4 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 321 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
