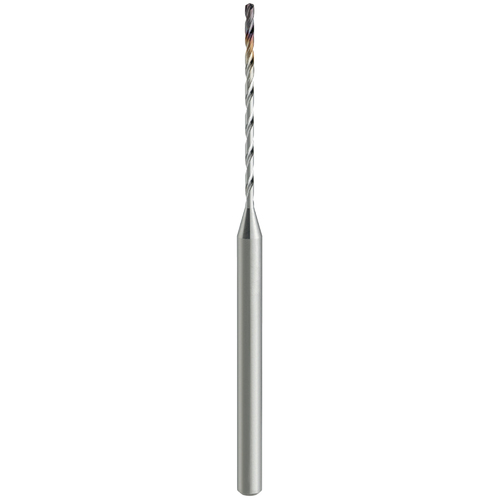

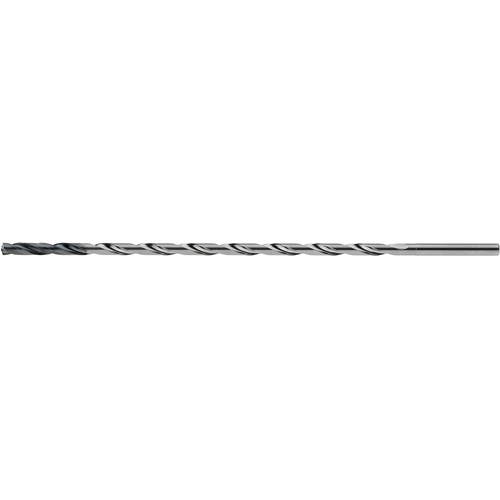

MHS0620L060B CARB DRILL
SC Drill; 6.2 mm Dia. × 8 mm Shank Dia. × 111.1 mm OAL × 59.6 mm LCF ; 140 Degrees ; 7xD ; Series MHS
| Drill Bit Size / Cutting Diameter (DC) | 6.2 mm | Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.2 mm | Cutting Edge Material | Carbide |
| Length Group | 7xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | MHS |
| Head Length (LH) | 61.1 mm | Usable Length (LU) | 44.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 59.6 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 111.1 mm |
| Point Length (PL) | 1.1 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 110 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
