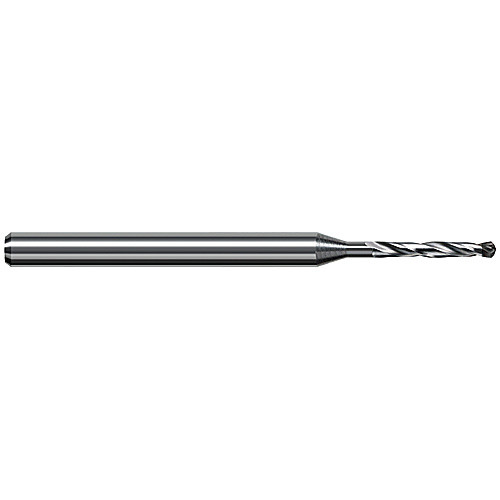

Solid Carbide Drill; 2.381 mm Dia. × 4 mm Shank Dia. × 63 mm OAL × 16 mm LCF ; 130 Degrees ; 5xD ; Helical Flute
SC Drill; 2.381 mm Dia. × 4 mm Shank Dia. × 63 mm OAL × 16 mm LCF ; 130 Degrees ; 5xD ; Helical Flute
| Drill Bit Size / Cutting Diameter (DC) | 2.381 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.381 mm | Tool Type | Miniature |
| Length Group | 5xD | Flute Type | Helical |
| Applicable Material | | Hard Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 16 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 16 mm |
| Functional Length (LF) | 16 mm | Overall Length (OAL) | 63 mm |
| Flute Helix Angle (FHA) | 25 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | High Performance | Single / Double End | Single End |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.025
