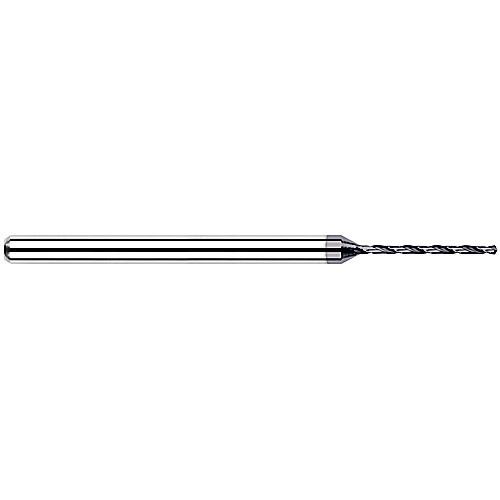

Solid Carbide Drill; 1/32″ Dia. × 1/8″ Shank Dia. × 1-1/2″ OAL × 0.21″ LCF ; 130 Degrees ; Helical Flute ; TiAlN
SC Drill; 1/32″ Dia. × 1/8″ Shank Dia. × 1-1/2″ OAL × 0.21″ LCF ; 130 Degrees ; Helical Flute ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 1/32″ | Tool Type | Miniature |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/32″ | Flute Type | Helical |
| Decimal Equivalent | 0.0313″ | Point Shape | Standard |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | Usable Length (LU) | 0.21″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Chip Flute (LCF) | 0.21″ |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 1-1/2″ |
| Functional Length (LF) | 0.21″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Miniature | Single / Double End | Single End |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.016
