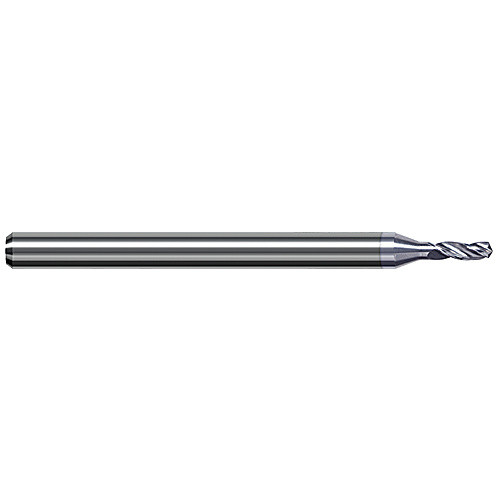

Solid Carbide Drill; 2.527 mm Dia. × 4 mm Shank Dia. × 50 mm OAL × 12 mm LCF ; 130 Degrees ; 3xD ; Helical Flute ; TiB2
SC Drill; 2.527 mm Dia. × 4 mm Shank Dia. × 50 mm OAL × 12 mm LCF ; 130 Degrees ; 3xD ; Helical Flute ; TiB2
| Drill Bit Size / Cutting Diameter (DC) | 2.527 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.527 mm | Tool Type | Miniature |
| Length Group | 3xD | Flute Type | Helical |
| Coating | TiB2 | Point Shape | Standard |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 12 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 12 mm |
| Functional Length (LF) | 12 mm | Overall Length (OAL) | 50 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Number of Teeth | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | High Performance | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
