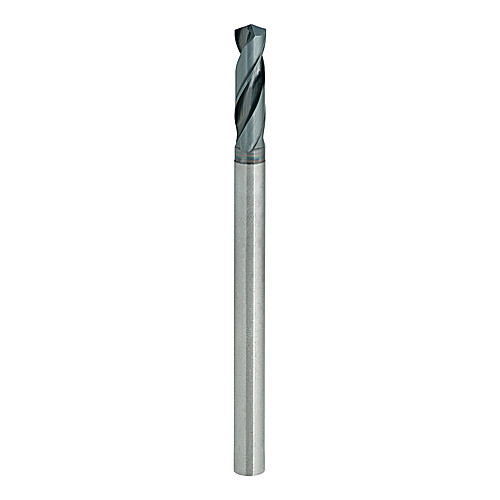

DWAE0890X04S090CARB DRL
SC Drill; 8.9 mm Dia. × 9 mm Shank Dia. × 99.6 mm OAL × 61.6 mm LCF ; 140 Degrees ; Series DWAE
| Drill Bit Size / Cutting Diameter (DC) | 8.9 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.9 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | DP102A |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Measurement Type | Metric |
| Head Length (LH) | 63.6 mm | Series/List # | DWAE |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 37.2 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 61.6 mm |
| Point Length (PL) | 1.6 mm | Overall Length (OAL) | 99.6 mm |
| Functional Length (LF) | 98 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
