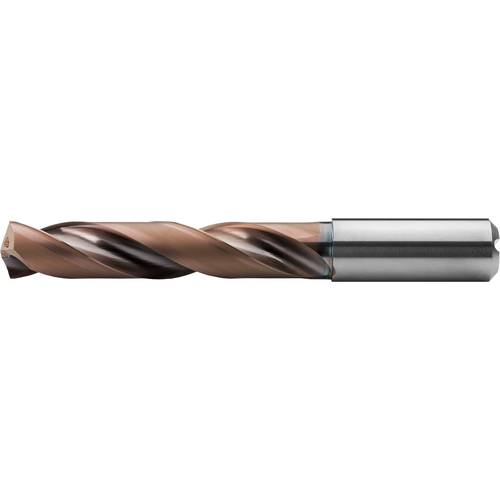

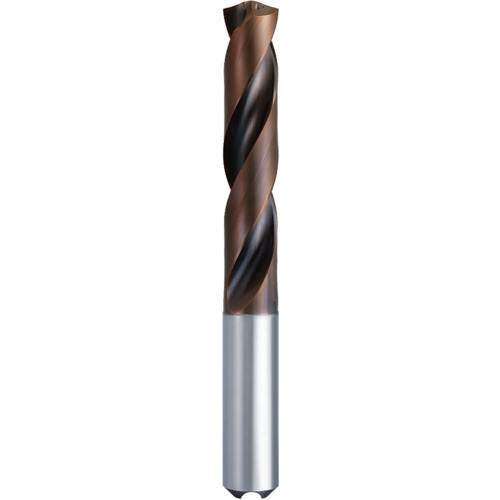

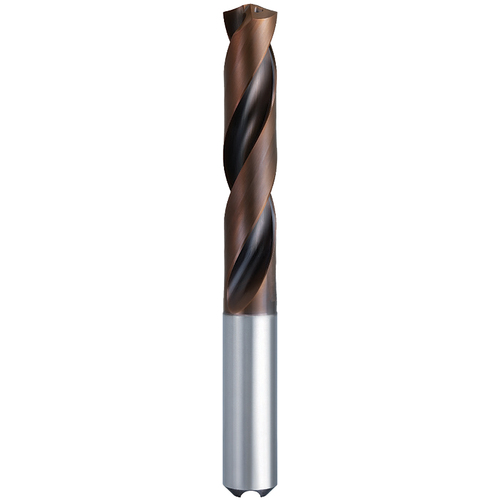

MMS1810X3DB CARB DRILL
SC Drill; 18.1 mm Dia. × 20 mm Shank Dia. × 160.3 mm OAL × 96.3 mm LCF ; 140 Degrees ; 3xD ; Series MMS
| Drill Bit Size / Cutting Diameter (DC) | 18.1 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18.1 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Grade | DP7020 |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | MMS |
| Head Length (LH) | 99.3 mm | Usable Length (LU) | 57.6 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 96.3 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 160.3 mm |
| Point Length (PL) | 3.3 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 157 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
