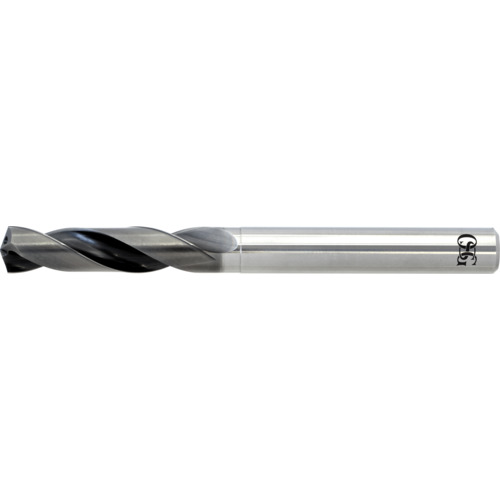

4.50MM ADO-SUS-3D DIN
SC Drill; 4.5 mm Dia. × 6 mm Shank Dia. × 80 mm OAL × 27 mm LCF ; 140 Degrees ; 3xD ; AlTiCrN ; Series 5200
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | AlTiCrN | Series/List # | 5200 |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 27 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 27 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 80 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 27 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.055
