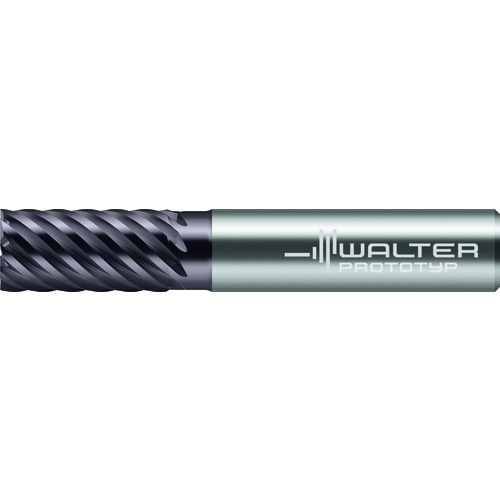

MA230-08.0A9SD-WJ30TF
SQ End Mill; 8 mm Dia. × 26 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 9 FL ; 20 mm LBS ; Carbide ; AlTiSiN ; Series VXMG9
| Cutting Diameter (DC) | 8 mm | Flute Count (NOF) | 9 |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 20 mm |
| Depth of Cut Maximum (APMX) | 26 mm | Tool Type | High Performance |
| Overall Length (OAL) | 63 mm | Decimal Equivalent | 0.315″ |
| Cutting Edge Material | Carbide | Series/List # | VXMG9 |
| Coating | AlTiSiN |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.098
