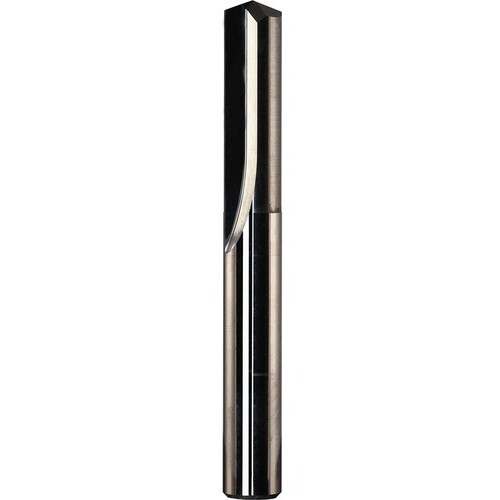

9/32″ Dia. × 9/32″ Shank × 1-1/2″ Flute Length × 2-11/16″ OAL, 3xD, 140°, Uncoated, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 9/32″ Dia. × 9/32″ Shank Dia. × 2-11/16″ OAL × 1-1/2″ LCF ; 140 Degrees ; 3xD ; Straight Flute ; Uncoated ; Series 106
| Drill Bit Size / Cutting Diameter (DC) | 9/32″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Length Below Shank | 1.275″ |
| Decimal Equivalent | 0.2813″ | Flute Type | Straight |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 106 |
| Connection Diameter Machine Side (DCONMS) | 9/32″ | Usable Length (LU) | 1-13/64″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 1-1/2″ |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 2-11/16″ |
| Flute Helix Angle (FHA) | 0 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.087
