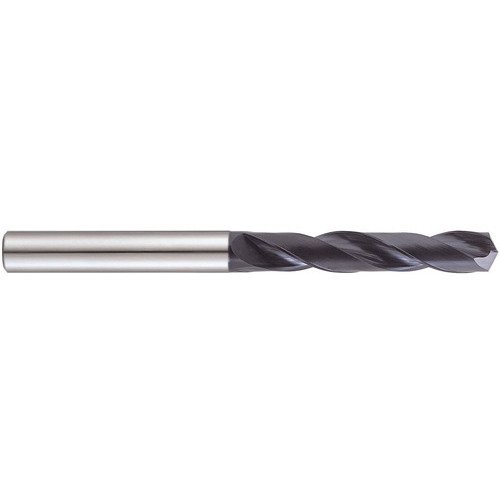

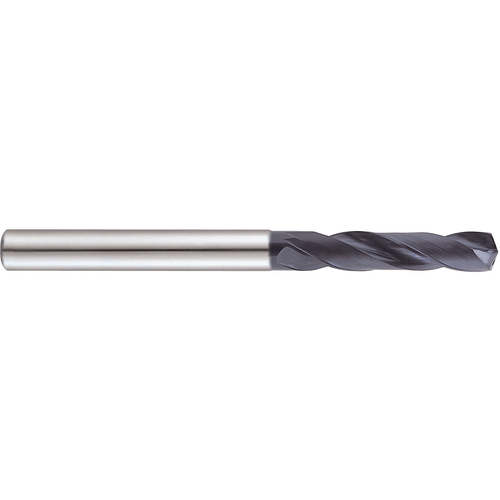

SC Drill; 7/16″ Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH423
SC Drill; 7/16″ Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH423
| Drill Bit Size / Cutting Diameter (DC) | 7/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4375″ | Tool Type | Carbide Dream Drill - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.113 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH423 |
| Coating | TiAlN | Usable Length (LU) | 55 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 102 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0796″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.285
