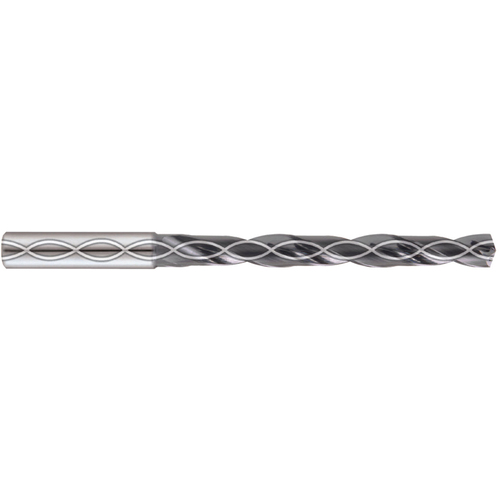

13/32 5XD DREAM INOX
SC Drill; 13/32″ Dia. × 12 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 140 Degrees ; 5xD ; TiAIN ; Series DH452
| Drill Bit Size / Cutting Diameter (DC) | 13/32″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4063″ | Tool Type | Dream Drills INOX with coolant holes |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.319 mm | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | DH452 |
| Coating | TiAIN | Usable Length (LU) | 71 mm |
| Applicable Material | | Steel | Stainless Steel | | Length Chip Flute (LCF) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 118 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.878 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.25
Package Width
0.75
Package Height
0.75
Package Weight
0.262
