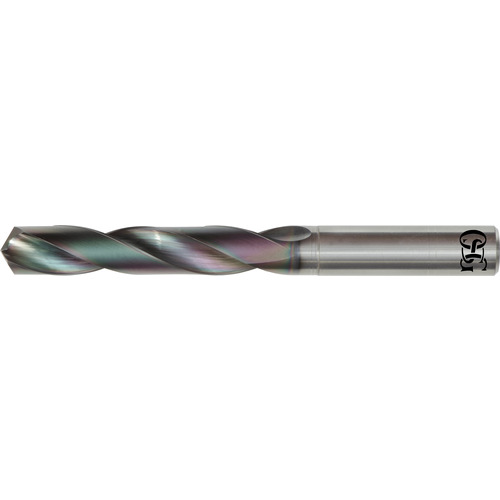

13.3 mm Dia. × 14 mm Shank × 77 mm Flute Length × 124 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 13.3 mm Dia. × 14 mm Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 13.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.3 mm | Tool Type | Jobber Drill |
| Length Group | 4xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6310 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 77 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 124 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 77 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.15000
Package Width
.85000
Package Height
.75000
Package Weight
0.415
