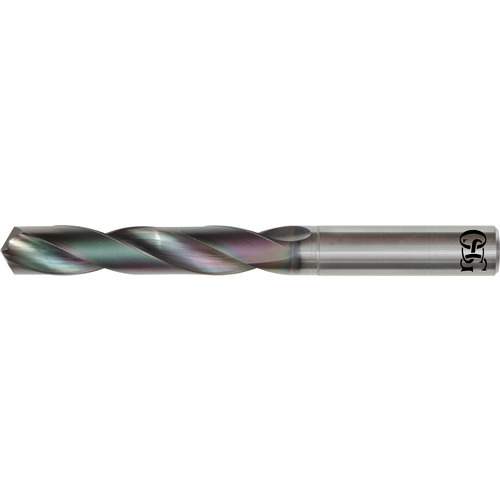

9.7 mm Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 9.7 mm Dia. × 10 mm Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 9.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.7 mm | Tool Type | Jobber Drill |
| Length Group | 4xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6310 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 61 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.25000
Package Width
.65000
Package Height
.50000
Package Weight
0.185
