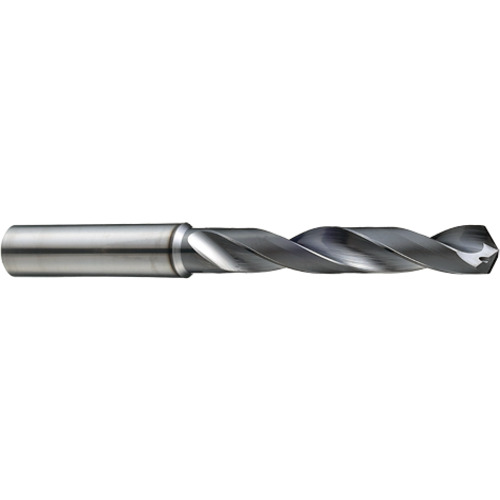

SC Drill; 15/64″ Dia. × 0.2362″ Shank Dia. × 3.2283″ OAL × 1.7323″ LCF ; 118 Degrees ; 5xD ; DLC ; Series DGE433
SC Drill; 15/64″ Dia. × 0.2362″ Shank Dia. × 3.2283″ OAL × 1.7323″ LCF ; 118 Degrees ; 5xD ; DLC ; Series DGE433
| Drill Bit Size / Cutting Diameter (DC) | 15/64″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2344″ | Tool Type | Carbide Dream Drill For Aluminum W/ Coolant (5xD) |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.95 mm | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | DGE433 |
| Coating | DLC | Usable Length (LU) | 44 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 1.7323″ |
| Connection Diameter Machine Side (DCONMS) | 0.2362″ | Overall Length (OAL) | 3.2283″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0704″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.625
Package Weight
0
