DE1150053T2R01 IN2205

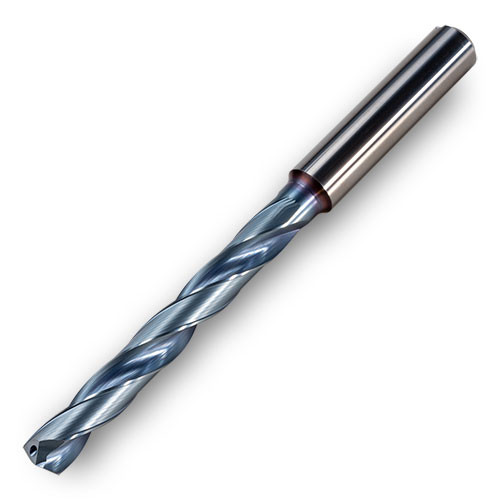

SC Drill; 0.453″ Dia. × 0.472″ Shank Dia. × 4.646″ OAL × 2.795″ LCF ; 140 Degrees ; Jobber ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.453″ | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.453″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2638″ | Measurement Type | Inch |
| Length Group | Jobber | Series/List # | 2464 |
| Application | | Drill Mill | Drilling | | Usable Length (LU) | 2.114″ |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Length Chip Flute (LCF) | 2.795″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4.646″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.082″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
Product Features
| Family Description | Metric & Inch Diameters 140° Included Point Internal Coolant | Country of Origin | Usa |
