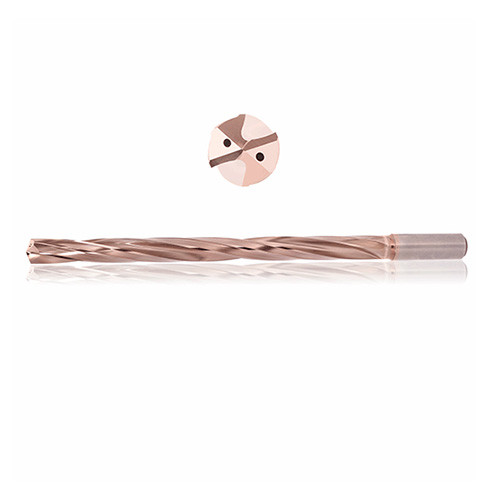

0.4687 mm Dia. × 12 mm Shank × 71 mm Flute Length × 118 mm OAL, 5xD, 135°, ZircoPlus, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.4687 mm Dia. × 12 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 135 Degrees ; 5xD ; Helical Flute ; ZircoPlus ; Series AXC
| Drill Bit Size / Cutting Diameter (DC) | 11.9 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.4685″ | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.9 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H5010 ZircoPlus |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 53.1 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 71 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 118 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | TRIPLE-MARGIN DRILL |
| Shank Length (LS) | 47 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 135° Point, Triple Margin, High Performance, Coolant ThroughFor Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
