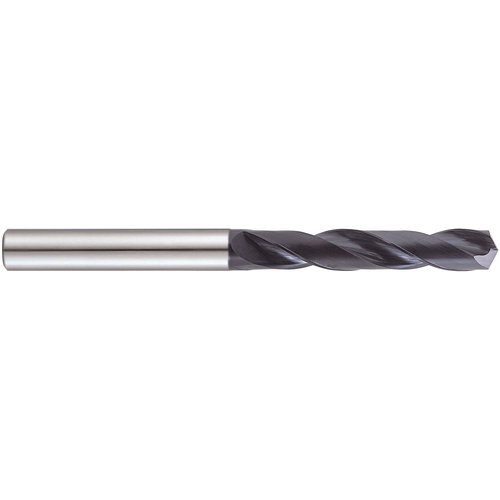

15/32 CBD DREAM DRILL 3XD
SC Drill; 15/32″ Dia. × 15/32″ Shank Dia. × 4-3/4″ OAL × 2-7/8″ LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH414
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4688″ | Tool Type | Carbide Dream Drill - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.908 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH414 |
| Coating | TiAlN | Usable Length (LU) | 2-7/8″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 2-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 15/32″ | Overall Length (OAL) | 4-3/4″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0853″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.375
Package Width
0.75
Package Height
0.75
Package Weight
0.32
